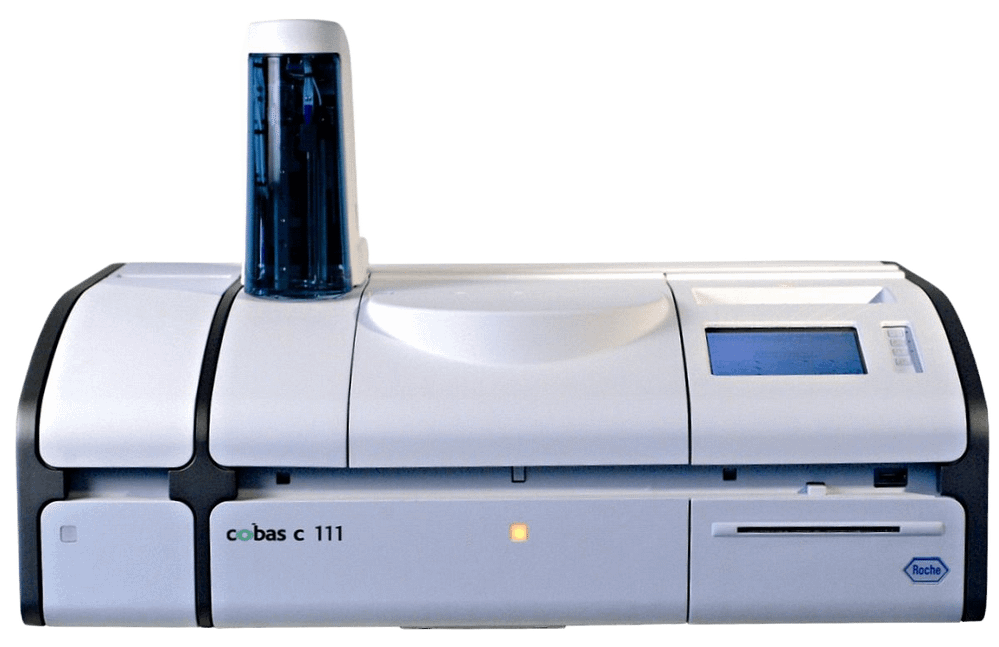

Introducing the Cobas C111 Analyzer: A Compact Solution for Clinical Chemistry Testing
The cobas c 111 analyzer stands out as the most compact member of the cobas ® serum work area platform family, offering an ideal solution for clinical chemistry testing needs. It is specifically designed for laboratories that handle a daily workload of 10 to 50 samples, making it exceptionally suitable and efficient for such environments.
The cobas c 111 is a clinical chemistry analyzer developed by Roche Diagnostics. It is designed for small to medium-sized laboratories and point-of-care testing, offering reliable, efficient, and precise testing capabilities for a wide range of clinical chemistry tests. Below are the key features and specifications:
Key Features:
- Compact Design:
- Small footprint suitable for tight spaces, making it ideal for small labs or point-of-care settings.
- Automated testing for various clinical chemistry assays.
- Wide Test Menu:
- Supports a broad range of clinical chemistry tests, including routine tests for metabolic, cardiac, liver, kidney, and electrolyte panels.
- Offers around 60 tests (including customized test panels).
- Efficient Sample Processing:
- Can process up to 11 tests per sample.
- Up to 60 samples per hour throughput.
- The analyzer is capable of handling serum, plasma, and whole blood samples.
- Easy-to-Use Interface:
- Features a touchscreen display for easy navigation and operation.
- Intuitive user interface designed for quick test setup and result retrieval.
- Automated Calibration:
- Automated reagent management and onboard calibration ensure accurate and reliable results.
- Minimizes the need for manual intervention and reduces the potential for human error.
- Small Sample Volume:
- Requires a small sample volume (typically 10 µL per test) which is ideal for pediatric or emergency testing.
- Onboard Refrigeration:
- Refrigeration for reagents ensures that reagents are stored at optimal temperatures for maximum stability and performance.
- Integrated Quality Control:
- Includes internal quality control (QC) features, such as automatic calibration checks, built-in quality monitoring, and automatic QC flagging.
- Data Management & Connectivity:
- Supports bidirectional communication with laboratory information management systems (LIMS).
- The system offers external database connectivity for data storage, retrieval, and sharing.
- Can be integrated with other Roche devices to create a seamless workflow.
Specifications:
| Parameter | Details |
|---|---|
| Sample Types | Serum, Plasma, Whole Blood, Urine |
| Sample Volume | 10 μL per test |
| Throughput | Up to 60 tests per hour |
| Test Menu | ~60 tests, including metabolic, cardiac, liver, kidney, electrolytes, etc. |
| Channels | Single channel |
| Reagent Capacity | 2 reagent positions, each holding up to 60 tests |
| Calibration | Automated on-board calibration |
| Control & Calibration | Built-in QC monitoring, internal QC support, calibration controls |
| Data Connectivity | Bidirectional with LIMS, support for HL7 and LIS |
| Display | 8-inch color touchscreen |
| Dimensions | W x D x H: 360 x 460 x 340 mm |
| Weight | Approximately 15 kg |
| Power Supply | 100-240V, 50/60Hz |
| Operation Temperature | 15°C to 30°C (59°F to 86°F) |
| Humidity | 20% to 80% non-condensing |
| Throughput | Up to 60 tests per hour |
Additional Features:
- Reagent Flexibility: Can use both liquid and lyophilized reagents.
- Ease of Maintenance: The system is designed for minimal maintenance, with simple reagent management and automatic cleaning.
- Safety Features: Includes error detection mechanisms such as sample and reagent checks, and calibration integrity validation.
Applications:
- Routine clinical chemistry testing in areas like hospitals, private laboratories, or clinics.
- Point-of-care (POC) settings for rapid test results.
- Pediatric testing due to low sample volume requirements.
Overall, the cobas c 111 analyzer is built for flexibility, ease of use, and efficiency in a variety of clinical testing environments.
