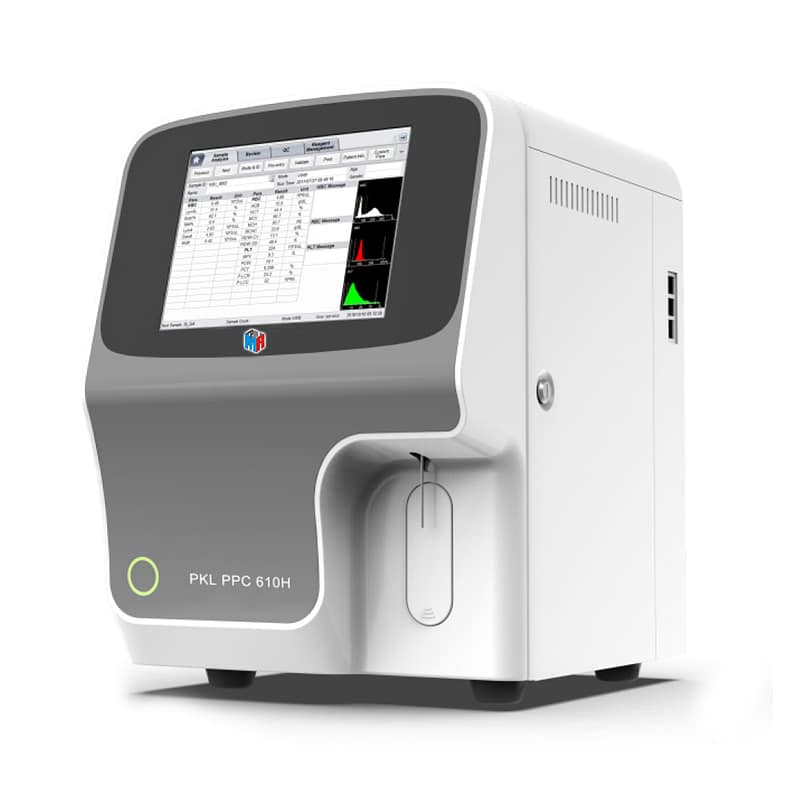

PKL PPC 610H Hematology Analyzer
Overview
The PKL PPC 610H is an automatic benchtop hematology analyzer manufactured by PKL/Paramedical srl, designed for complete blood count (CBC) testing in clinical laboratories, veterinary practices, and healthcare facilities. [[16]]
Key Features
- Large 10.4-inch color LCD display with Linux operating system for intuitive operation [[3]]
- 3-part white blood cell differentiation with 21 reportable parameters and 3 histograms [[1]]
- Throughput: Up to 60 samples per hour [[16]]
- Sample volume: Whole blood 10μL, Pre-diluted 20μL [[14]]
- Data storage: Up to 50,000–100,000 sample results with histograms [[13]]
- USB data backup & system upgrade support [[21]]
- LIS/HIS compatibility with HL7 protocol for hospital integration [[4]]
- Internal 57mm thermal printer plus support for external printers [[14]]
Technical Specifications
| Parameter | Details |
|---|---|
| Measured Parameters | WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Principles of Operation | Electrical Impedance (WBC/RBC/PLT); Photoelectric colorimetry, cyanide-free (HGB) [[13]] |
| Aperture Diameter | WBC: 100μm; RBC/PLT: 68μm |
| Test Modes | Whole blood, capillary blood, pre-diluted modes |
| Display | 10.4″ TFT color LCD, resolution 640×480 |
| Interfaces | 4 USB ports, 1 LAN port, RS232, parallel port |
| Power Requirement | AC 100V–240V, 50/60Hz, ≤200VA |
| Dimensions | 530mm(L) × 330mm(W) × 460mm(H) [[14]] |
| Net Weight | ~26 kg |
| Calibration | L-J, X, X-R, X-B control modes; manual and auto-calibration |
Applications
- ✅ Human diagnostic testing in hospitals and clinics
- ✅ Veterinary diagnostics (dogs, cats, horses, pigs, etc.) [[15]]
- ✅ Small to medium-sized laboratories requiring reliable CBC analysis
Advantages
- 🔹 Low maintenance with high-efficiency self-checking system
- 🔹 Affordable operation with only 2 reagents required
- 🔹 Compact benchtop design saves laboratory space
- 🔹 User-friendly interface with mouse/keyboard support
- 🔹 International quality control standards compliance [[13]]
For procurement, technical support, or reagent information, contact authorized distributors such as Paramedical srl, Biowell Medical, or MR-Healthcare. [[2]][[3]][[13]]
Would you like more details about pricing, warranty, or specific application support for this analyzer? Just contact Us.
